錐套緊固襯套與錐孔同步帶輪安裝使用方法
The installation and usage of TaperLock Bushings and Taper-lock Belt Pulleys

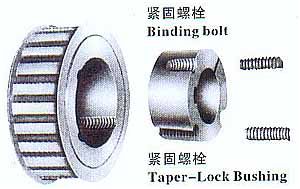

使用錐面緊固襯套安裝的錐孔同步帶輪，安裝、拆卸方便、以配用各種孔徑的錐面緊固襯套，就可以適用軸徑的安裝、使用。
  Tap-Lock Timing BELT pulley with Taper-Lock Bushing is easy on and off,it can be used on variable hubs due to Taper-Lock bushing Bushing bores.

1.將錐面緊固套與同步帶輪裝在傳動輪上。
    Place Taper-lock Bushing and Timing Belt Pulley on the transmission shaft.

2.將螺釘摔入緊固螺釘孔，對稱用力擰緊，通過錐套的錐面作用，將傳動軸與皮帶輪聯系在一起。
     Insertscrews into capscrew bore tighten the symmetricalscrews,Then the pulley grips the shaft firmly through the taper surface of the bushing.

3.將緊固螺釘退出后，再擰入退出螺釘孔，用力擰入，錐套與帶輪松動分離，然后取下。
     Take binding bolt outentirely.Insert it into the threaded holes,tighten it.This makes the Bushing easily removed from the Pulley.
